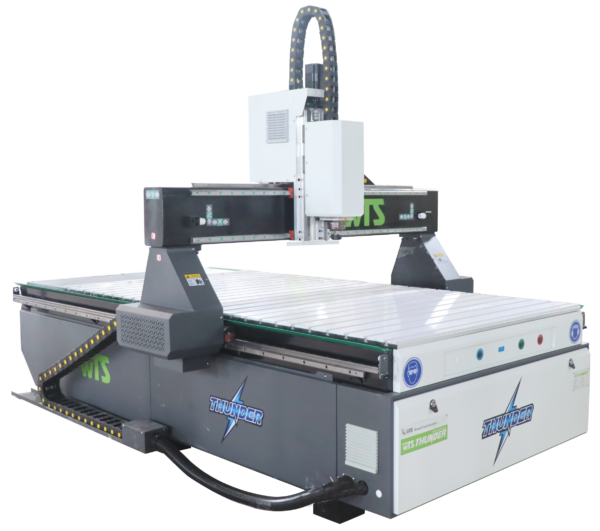

CNC ROUTER WTS THUNDER
Technical Parameters :
Travelling Size : 2500*1300*300 mm
Control System : Richauto DSP A11
Spindle : HQD, 6 KW, 24000 rpm, Air Cooling
Inverter : Fulling 7.5 KW
Power : 220V, 50 hz, Single Phase
Motor : Leadshine 750W servo motor
Drive : Leadshine 750W servo drive
Z Transmission System : Taiwan 2505 TBI ball screw on Z axis
Linear Guide Way And Block : Taiwan HIWIN 25mm square rails & 1.5M Helical rack
Electric Components : Schneider
Sensors : Omron, Japan
Table Height : Standard
Working Table Structure : Aluminum profile table+T slots,with PVC
Lubrication System : Auto lubrication
