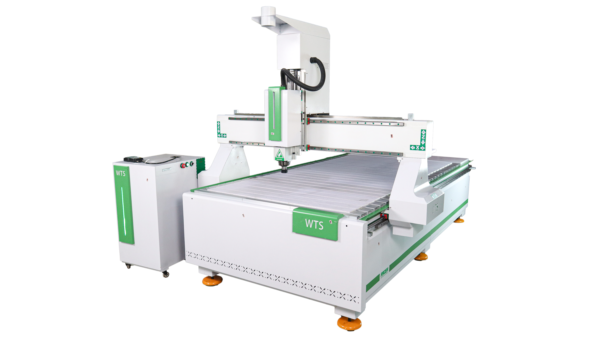

CNC ROUTER WTS RACER PRO (NC)
Technical Parameters :
Travelling Size : 2500*1300*300 mm
Control System : NC
Spindle : HQD, 6 KW, 18000 rpm, Air Cooling
Inverter : Best 7.5 KW
Power : 220V, 50 hz, Single Phase
X, Y Axis Driving : Yako Easy Servo Motor and Drive
Z Axis Driving : Yako Easy Servo Motor and Drive
X, Y Transmission System : Rack And Pinion 1.5m
Z Transmission System : Ball Screw With Coupling Structure
Linear Guide Way And Block : 25mm
Electric Components : Schneider
Sensors : Omron, Japan
Table Height : Standard
Working Table Structure : T-slot table + White PVC (Pasted on the aluminium table)
Control Cabinet : Independent
Lubrication System : Manual
Body Structure : Steel Tube Structure With 6 Legs
