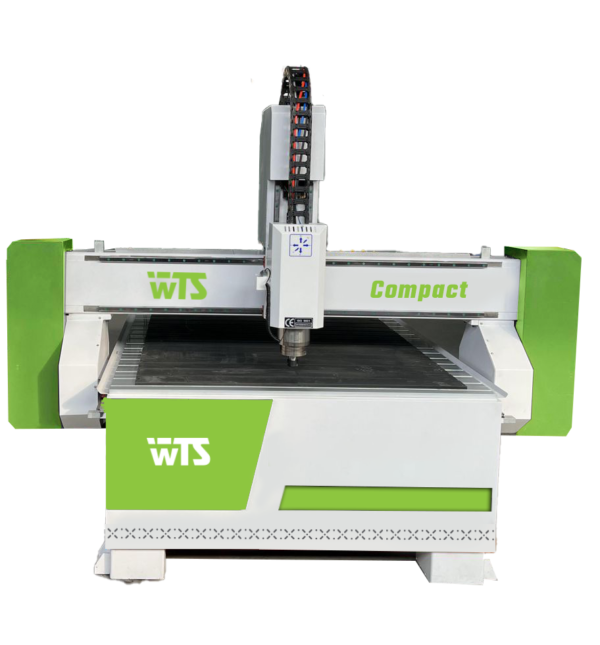

CNC ROUTER WTS COMPACT 1425
Technical Parameters :
Travelling Size : 2500*1400*300 mm
Control System : DSP A11
Spindle : HQD, 6 KW, Air Cooling
Inverter : Best 7.5 KW
Power : 220V, 50 hz, Single Phase
Motor : DVS 750W AC servo motor
Drive : DVS 750W AC servo motor
X, Y Transmission System : High precision rack and speed reducer for XY-axis
Z Transmission System : TBI Ball Screw with Coupling Structure
Linear Guide Way And Block : 25mm Hiwin guide rail
Electric Components : Schneider
Sensors : Omron, Japan
Table Height : Standard
Working Table Structure : T- Slot Work Table
Control Cabinet : Independent
Lubrication System : Manual
