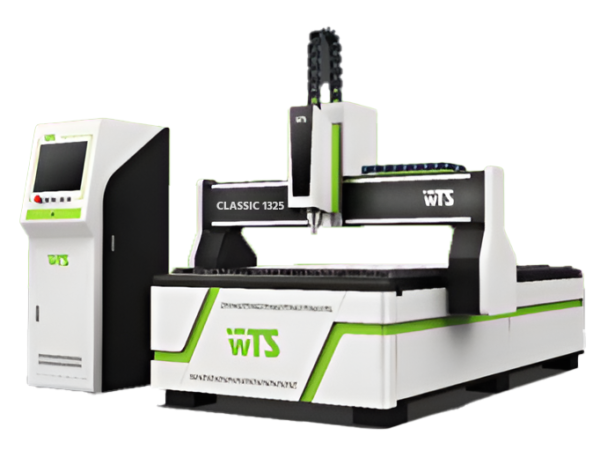

CNC ROUTER WTS CLASSIC (NC)
Technical Parameters :
Travelling Size : 2500*1300*300 mm
Control System : Lamda NC
Spindle : HQD, 6 KW, 18000 rpm, Air Cooling
Inverter : Fuling 7.5 KW
Power : 220V, 50 hz, Single Phase
X, Y Axis Driving : AC Servo Motor Yako 750W
Z Axis Driving : AC Servo Motor Yako 750W with Brake
X, Y Transmission System : Rack & Pinion 1.5m
Z Transmission System : Ball Screw With Coupling Structure
Linear Guide Way And Block : 25mm
Electric Components : Schneider
Sensors : Omron, Japan
Table Height : Standard
Working Table Structure : T- Slot Aluminium Table And Hard White PVC Pasted On Top
Control Cabinet : Independent
Lubrication System : Manual
Body Structure : Steel Tube Structure With 6 Legs
Reviews (0)
Shipping & Delivery
Related products
CNC ROUTER WTS CLASSIC (DSP)
Technical Parameters :
Travelling Size : 2500*1300*300 mm Control System : Richauto A11E Spindle : HQD, 6 KW, 18000 rpm, Air Cooling Inverter : Fuling 7.5 KW Power : 220V, 50 hz, Single Phase X, Y Axis Driving : AC Servo Motor Yako 750W Z Axis Driving : AC Servo Motor Yako 750W with Brake X, Y Transmission System : Rack & Pinion 1.5m Z Transmission System : Ball Screw With Coupling Structure Linear Guide Way And Block : 25mm Electric Components : Schneider Sensors : Omron, Japan Table Height : Standard Working Table Structure : T- Slot Aluminium Table And Hard White PVC Pasted On Top Control Cabinet : Independent Lubrication System : Manual Body Structure : Steel Tube Structure With 6 Legs
CNC ROUTER WTS THUNDER
Technical Parameters :
Travelling Size : 2500*1300*300 mm Control System : Richauto DSP A11 Spindle : HQD, 6 KW, 24000 rpm, Air Cooling Inverter : Fulling 7.5 KW Power : 220V, 50 hz, Single Phase Motor : Leadshine 750W servo motor Drive : Leadshine 750W servo drive Z Transmission System : Taiwan 2505 TBI ball screw on Z axis Linear Guide Way And Block : Taiwan HIWIN 25mm square rails & 1.5M Helical rack Electric Components : Schneider Sensors : Omron, Japan Table Height : Standard Working Table Structure : Aluminum profile table+T slots,with PVC Lubrication System : Auto lubrication
CNC ROUTER WTS COMPACT 1425
Technical Parameters :
Travelling Size : 2500*1400*300 mm Control System : DSP A11 Spindle : HQD, 6 KW, Air Cooling Inverter : Best 7.5 KW Power : 220V, 50 hz, Single Phase Motor : DVS 750W AC servo motor Drive : DVS 750W AC servo motor X, Y Transmission System : High precision rack and speed reducer for XY-axis Z Transmission System : TBI Ball Screw with Coupling Structure Linear Guide Way And Block : 25mm Hiwin guide rail Electric Components : Schneider Sensors : Omron, Japan Table Height : Standard Working Table Structure : T- Slot Work Table Control Cabinet : Independent Lubrication System : Manual
CNC ROUTER WTS RACER PRO (NC)
Technical Parameters :
Travelling Size : 2500*1300*300 mm Control System : NC Spindle : HQD, 6 KW, 18000 rpm, Air Cooling Inverter : Best 7.5 KW Power : 220V, 50 hz, Single Phase X, Y Axis Driving : Yako Easy Servo Motor and Drive Z Axis Driving : Yako Easy Servo Motor and Drive X, Y Transmission System : Rack And Pinion 1.5m Z Transmission System : Ball Screw With Coupling Structure Linear Guide Way And Block : 25mm Electric Components : Schneider Sensors : Omron, Japan Table Height : Standard Working Table Structure : T-slot table + White PVC (Pasted on the aluminium table) Control Cabinet : Independent Lubrication System : Manual Body Structure : Steel Tube Structure With 6 Legs
CNC ROUTER WTS RACER PRO (DSP)
Technical Parameters :
Travelling Size : 2500*1300*300 mm Control System : RichAuto A11E Spindle : HQD, 6 KW, 18000 rpm, Air Cooling Inverter : Best 7.5 KW Power : 220V,50HZ,Single Phase X, Y Axis Driving : Yako Easy Servo Motor and Driver Z Axis Driving : Yako Easy Servo Motor and Driver X, Y Transmission System : Rack And Pinion 1.5m Z Transmission System : Ball Screw With Coupling Structure Linear Guide Way And Block : 25mm Electric Components : Schneider Sensors : Omron, Japan Table Height : Standard Working Table Structure : T-slot table + White PVC (Pasted on the aluminium table) Control Cabinet : Independent Lubrication System : Manual Body Structure : Steel Tube Structure With 6 Legs
