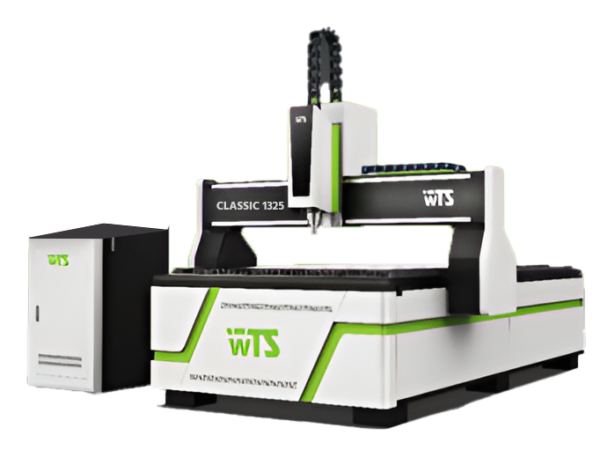

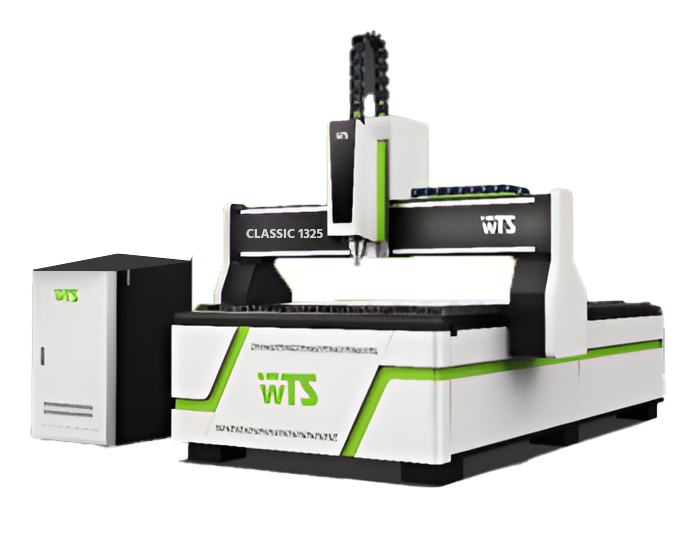

CNC ROUTER WTS CLASSIC (DSP)
Technical Parameters :
Travelling Size : 2500*1300*300 mm
Control System : Richauto A11E
Spindle : HQD, 6 KW, 18000 rpm, Air Cooling
Inverter : Fuling 7.5 KW
Power : 220V, 50 hz, Single Phase
X, Y Axis Driving : AC Servo Motor Yako 750W
Z Axis Driving : AC Servo Motor Yako 750W with Brake
X, Y Transmission System : Rack & Pinion 1.5m
Z Transmission System : Ball Screw With Coupling Structure
Linear Guide Way And Block : 25mm
Electric Components : Schneider
Sensors : Omron, Japan
Table Height : Standard
Working Table Structure : T- Slot Aluminium Table And Hard White PVC Pasted On Top
Control Cabinet : Independent
Lubrication System : Manual
Body Structure : Steel Tube Structure With 6 Legs
